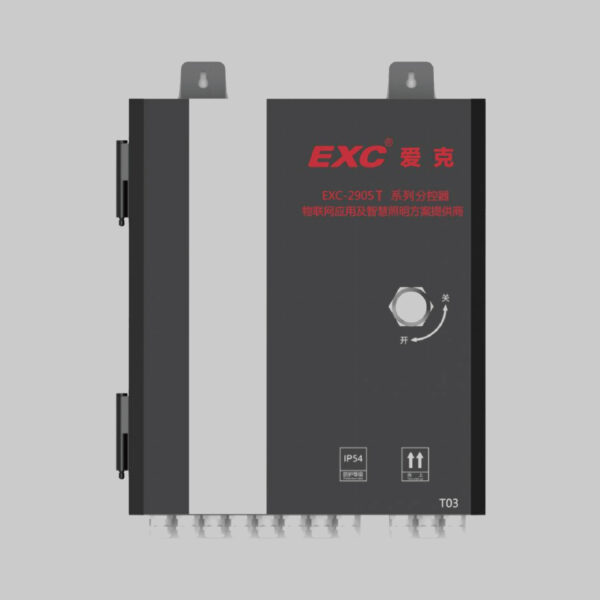

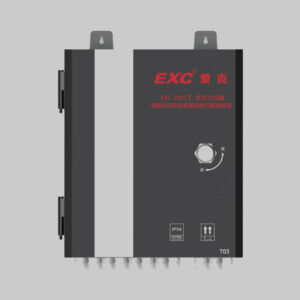

EXC-2905T

  • To be used together with master controller;
  • Support 8-port output, with each port controlling no more than 512 pixels;
  • Support Ethernet interface and TCP/IP/UDP data communication protocols
  • Support parallel connection of switches to reduce system cascading chain length and improve stability;
  • Support synchronous control of multiple GPS satellites/BTS wireless base stations;
  • Control no more than 60 frames/s of frame frequency and 65536 grades grey scale lighting fixture;
  • Support standard DMX512/1990 general protocol and DMX512 extension protocol;
  • Support three-primary-color independent brightness control to make the precise adjustment of white balance simpler and more effective;
  • Support automatic, timed and preset festival effect play
  • Support the mixed use of lighting fixtures in different types and protocols, to achieve high compatibility;
  • Be provided with port enhancement type protective circuit to achieve better protection of port;
  • Support the control over EXC full series lighting fixture
Basic Specifications

Control method: EXC full series lighting fixture and DMX512 standard protocol lighting fixture

Output channel: 8 LED on-load output port

Pixel under control: 8×512 pixel

Grey scale: 8Bits/12Bits/16Bits

Communication port: 1000Mbps ethernet portx2

Communication protocol: TCP/IP protocol

On-line play: Yes

Storage medium: N/A

Wi-Fi Sync: Yes

Shell material: high quality electro-galvanized steel sheet + powder injection

Surface color: black

Signal connector: dedicated EXC connector

Standard accessories: AC power cord×1

Operating temperature: -30℃~50℃

Storage Temperature: -40℃~70℃

Humidity range: 0%-90%

Protection rating: IP5X

Resources
Optional Parameters

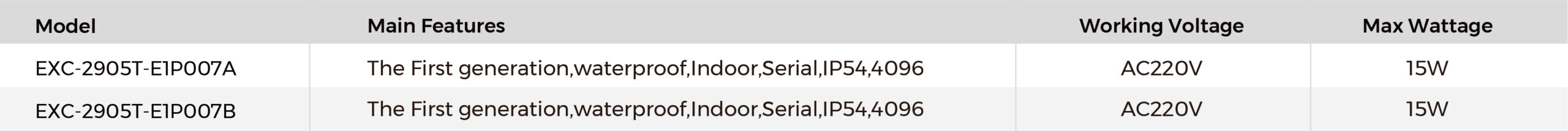

Available Models

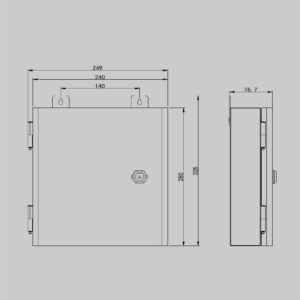

Installation Methods
