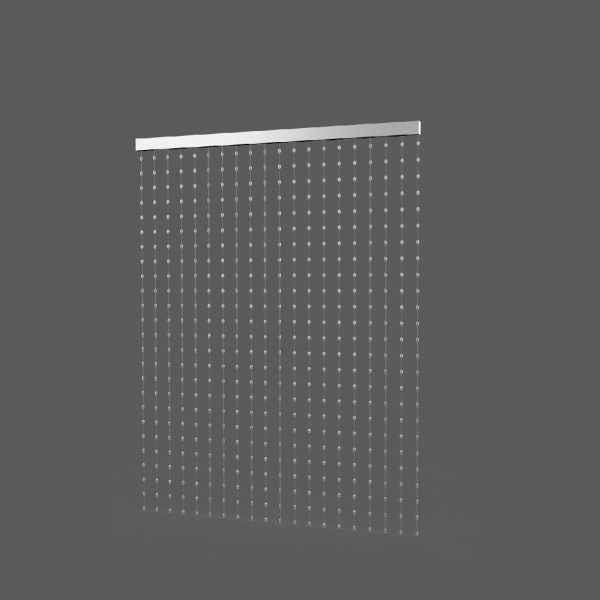

Intelligent Curtain Screen

20 m cascade, intelligent and reliable
Transparent and efficient
Lightweight and can be customized to fit actual installation dimensions
IP Rate up to IP66
Skeletonized design, flexible structure, lightweight, profile integration, fast and easy installation
Dual signal transmission, in the event of a single pixel damage, does not affect the overall color display

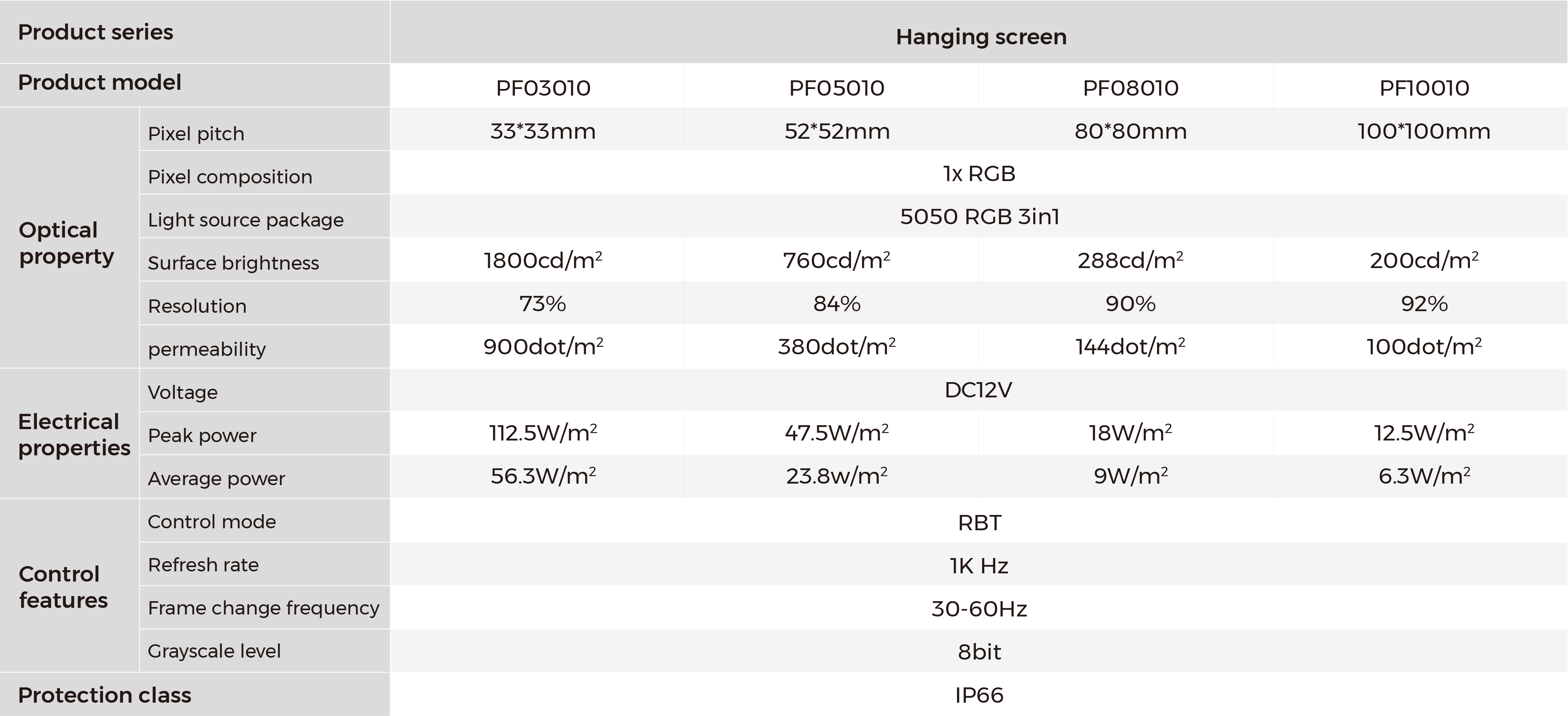

Basic Specifications

Pixel Composition: 1 pcs RGB
Light Source：5050 RGB 3in1
Voltage：DC12V
Control Mode：RBT
Refresh Rate：1K Hz
Frame Rate：30-60 Hz
Gray Scale：8 bit
IP Rate：IP66

Resources

Specification IES File CAD Drawing

Optional Parameters

Model

PF03010

PF05010

PF08010

PF10010

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear

Add To Wishlist

View Wishlist

KNX INTELLIGENT CONTROL SYSTEM

IOT ENERGY-SAVING LAMP

AI RDM

Intelligent Curtain Screen

Basic Specifications

Resources

Optional Parameters

Available Models

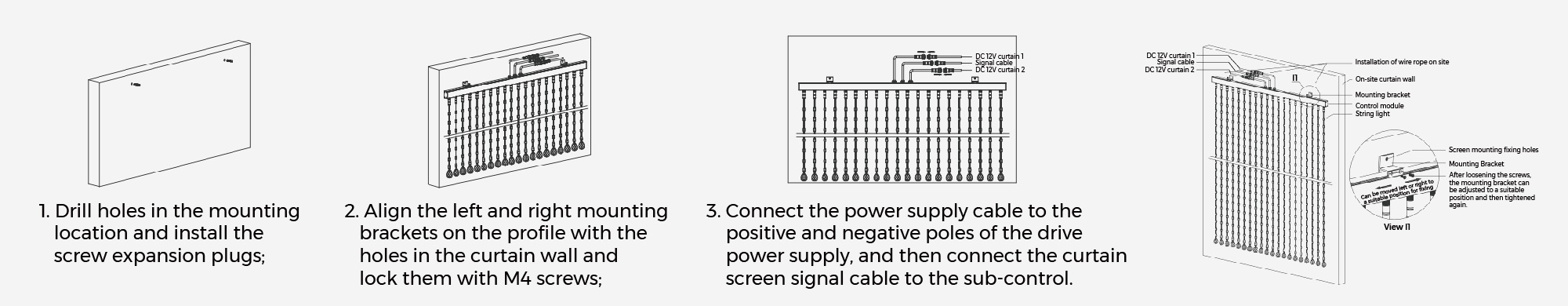

Installation Methods
