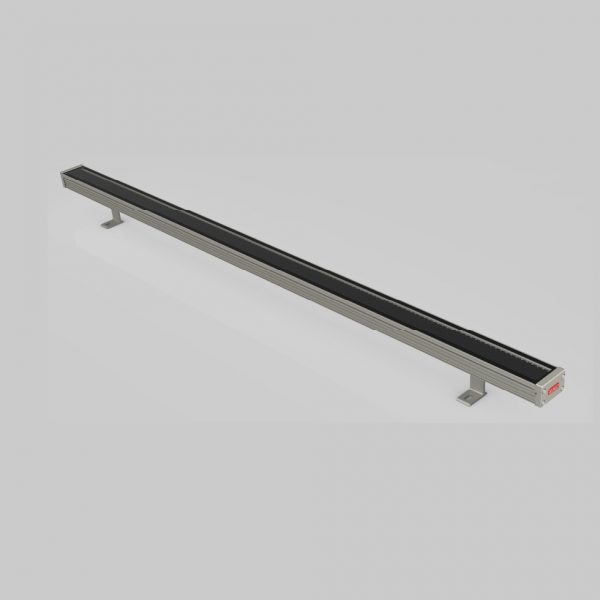

EXC-W46G

Intelligent DMX512+RDM bus communication technology, support online one-key writing address, online fault detection
One-piece high-strength aluminum alloy lamp body + high-strength tempered glass lampshade, hydrophobic design of the light surface
Three times optical design, according to the application scenarios adaptive light distribution
Built-in honeycomb grille anti-glare design
Wall wash height up to 5 meters

Basic Specifications

Operating Voltage: DC24V/DC48V/AC220V
Max Power: 48W
Color: W / RGB / RGBW
Light Source: SMD W / RGB 3in1/RGBW 4in1
Material: High-strength aluminum alloy / tempered glass
Weight: 1.57Kg
Life: 50,000 hours
IP Rating: IP66
Application Environment: Outdoor

Resources

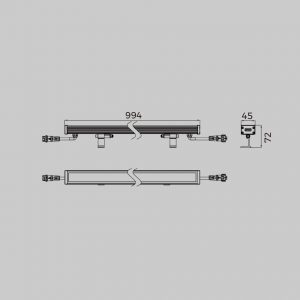

Specification IES File CAD Drawing

Optional Parameters

Voltage

DC24V

DC48V

Color

w

RGB

RGBW

Control protocol

DMX512

ON/OFF

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear

Add To Wishlist

View Wishlist

KNX INTELLIGENT CONTROL SYSTEM

IOT ENERGY-SAVING LAMP

AI RDM

EXC-W46G

Basic Specifications

Resources

Optional Parameters

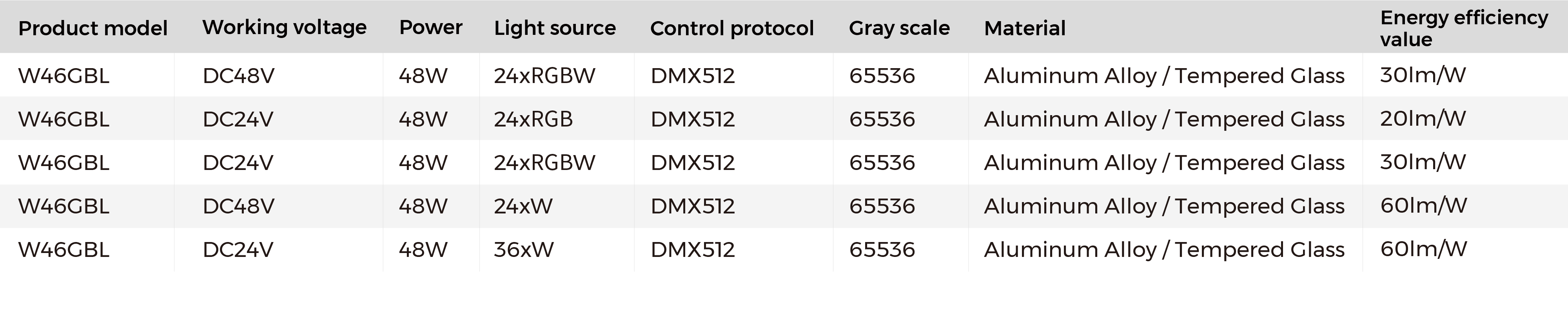

Available Models

Installation Methods
