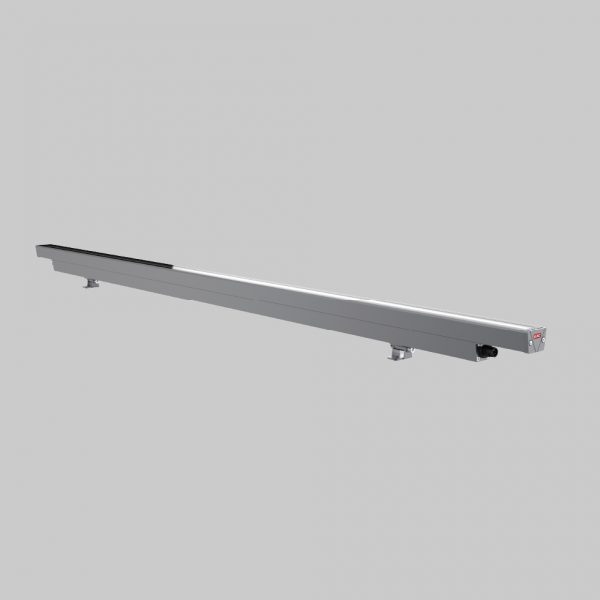

EXC-W35D

Intelligent DMX512 bus communication technology, support for online one-key write address
One-piece high-strength aluminum alloy lamp body + high-strength tempered glass lampshade, hydrophobic design of the light surface.
Three times optical design, according to the application of the scene to adapt to the light distribution
Diamond cut surface abstract extension molding design
Wall wash height 1-1.5 meters

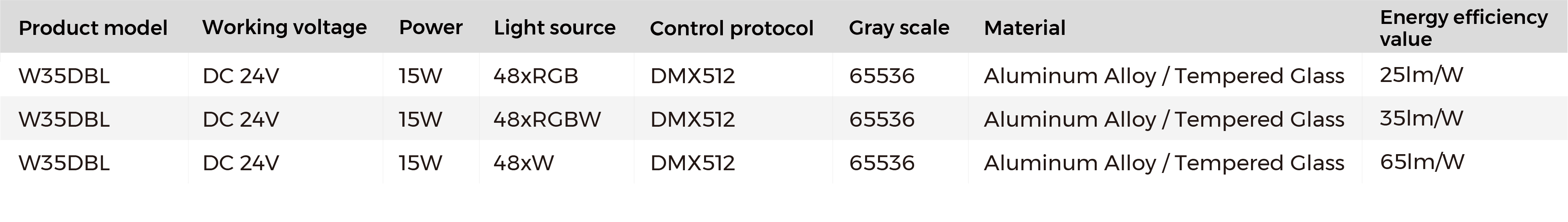

Basic Specifications

Operating Voltage: DC24V
Max Power: 15W
Color: W / RGB / RGBW
Light Source: SMD W / RGB 3in1/RGBW 4in1
Material: High-strength aluminum alloy / tempered glass
Weight: 1.36Kg
Life: 50,000 hours
IP Rating: IP66
Application Environment: Outdoor

Resources

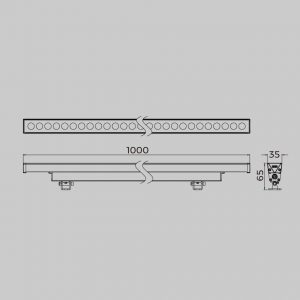

Specification IES File CAD Drawing

Optional Parameters

Voltage

DC24V

Customized

Color

w

RGB

RGBW

Control protocol

DMX512

ON/OFF

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
