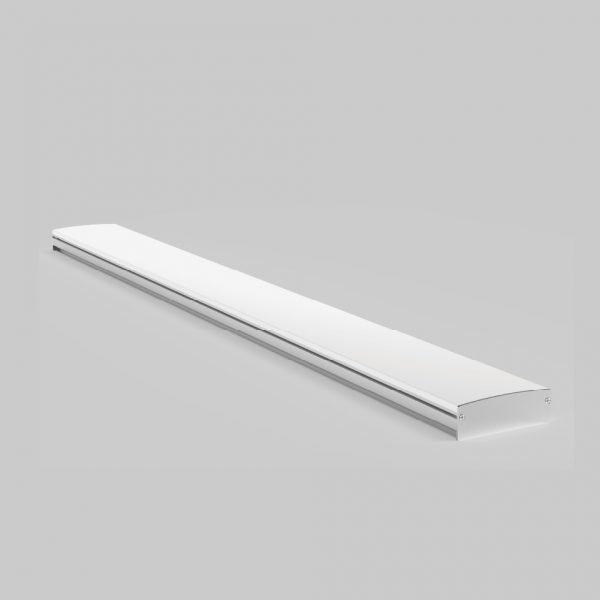

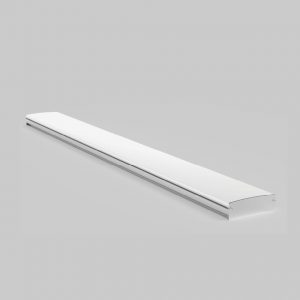

EXC-U100NEB0

Highly translucent and anti-aging homogenized PC cover, soft light and comfortable visual experience
100mm wide luminous surface increases the illumination range and enables the light to cover a wider area.
New generation DMX512 parallel bus technology.
Supports DMX512 large data traffic expansion.
17K high refresh rate, no flicker for cell phone shooting.
Supports low brightness and high glow, no loss of glow level when lowering the brightness.
Outdoor lightning and electrostatic discharge (ESD) special protection design
Germany imported high thermal conductivity adhesive potting waterproof design

Basic Specifications

Operating Voltage: DC24V
Max Power: 24W
Color: W / RGB / RGBW
Light Source: SMD W / RGB 3in1 / RGBW 4in1 LED
Material: High-strength aluminum alloy / Glass Lampshade
Weight: 1.49Kg
Life: 50,000 hours
IP Rating: IP66

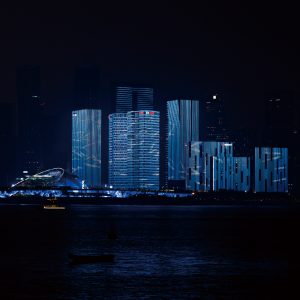

Application Environment: Outdoor

Resources

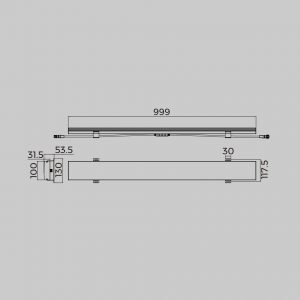

Specification IES File CAD Drawing

Optional Parameters

Power

12W

15W

Color

w

RGB

RGBW

Control protocol

DMX512

ON/OFF

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear

Add To Wishlist

View Wishlist

KNX INTELLIGENT CONTROL SYSTEM

IOT ENERGY-SAVING LAMP

AI RDM

EXC-U100NEB0

Basic Specifications

Resources

Optional Parameters

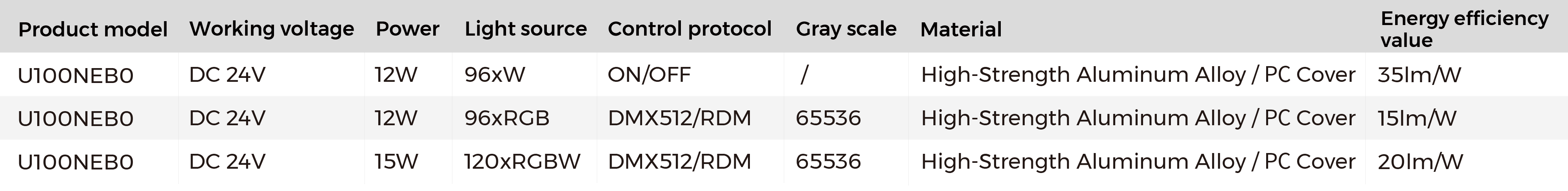

Available Models
