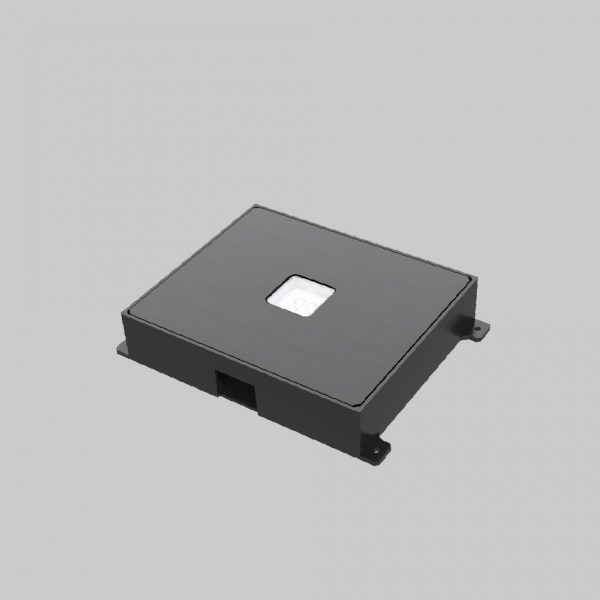

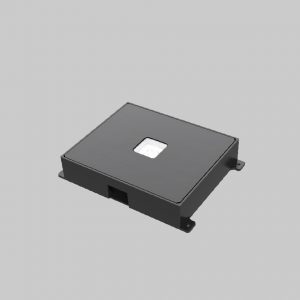

EXC-TP170C

  • Industry-leading photovoltaic charging efficiency enhancement technology to maximize the use of solar energy
  • Intelligent power control
  • Optical control, wired DMX512, wireless Zigbee multiple control technology in a single package
  • High-efficiency monocrystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design
  • Professional photovoltaic system with high-quality assembly process
  • Built-in highly integrated multi-dimensional safety protection design, support for light control anti-interference
  • Simple straight-locking installation design, flexible and convenient applications
Basic Specifications

Peak power consumption: 1W
Average power consumption: 0.4W
Light source: 4 x LED
Color: RGB
Light output: RGB ≥ 25lm/w
Photovoltaic battery specifications: 2W monocrystalline silicon
Energy storage battery specifications: 1500mAh LFP
Rated charging time: 3-4 h
Rated maximum endurance: 11-12h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 3 rainy days
Control : Light Control/ Wired DMX512 / Wireless Zigbee
Material: ABS, PC, glass

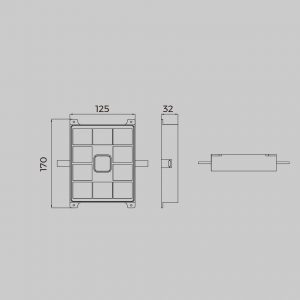

Size: L*W*H: 170*125*32mm
IP Rating: IP65
Weight: 0.42kg
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥15000h (battery capacity ≥80%)
Application: Full-color media façade display, maximum 4 points / m (north of 24 ° north latitude, can meet the application of the east-west façade of the building, not more than 150 meters of the building), profile mounting

Resources
Optional Parameters

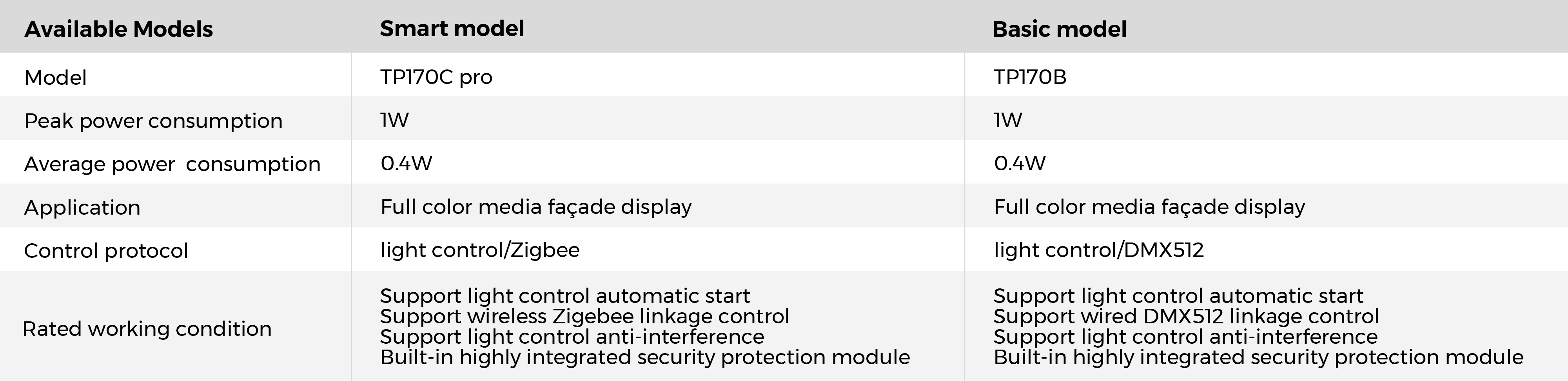

Available Models
