EXC-TL-Z09

Adopt famous brand waterproof isolated switching power supply, high safety and reliability;
Line shape design can extend the length and width of the lamp body at will;
Outdoor electrostatic spraying process on the surface of the lamp body, strong corrosion resistance and weather resistance, applicable to a variety of complex environments;
Uniform light, no glare;
PLC/485 and other intelligent control options;
Anti-electrocution protection: Class 1.

Basic Specifications

Power：15W/30W/45W/60W/75W/90W/120W/150W/180W/200W
Input Voltage：AC90-305V 50/60HZ
Power Factor：﹥0.95
Light Source：2835/3030
Color：3000K/4000K/5000K/5700K
CRI：Ra﹥70
Luminous Efficacy：120(lm/W)
Life：50000H
Material：AL6063
IP Rating：IP66
Work Temperature：-40℃ to +50℃
Environment humidity：10%~90%RH
Installation: Bracket installation

Resources

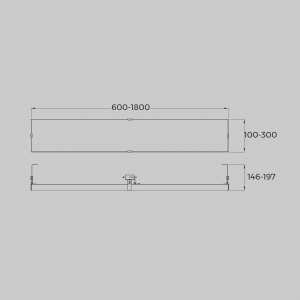

Specification IES File CAD Drawing

Optional Parameters

Power

30W

45W

75W

90W

120W

150W

15W

180W

200W

60W

Color

3000K

4000K

5000K

5700K

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear
