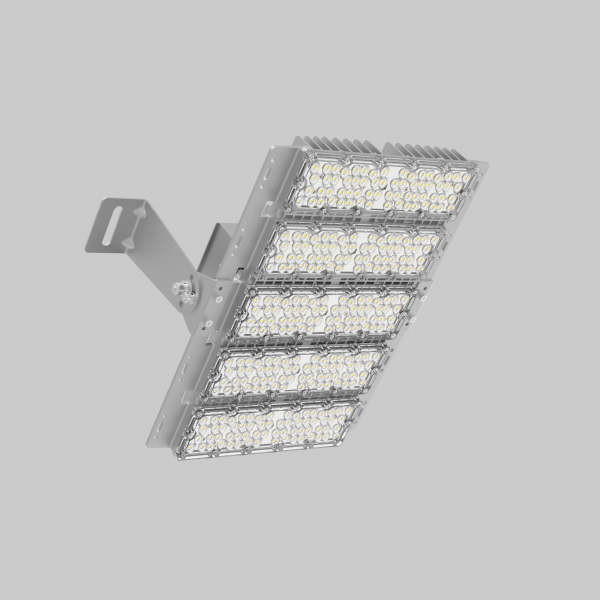

EXC-TL-Z06

  • Adopts waterproof isolated switching power supply of famous brand, with high safety and reliability;

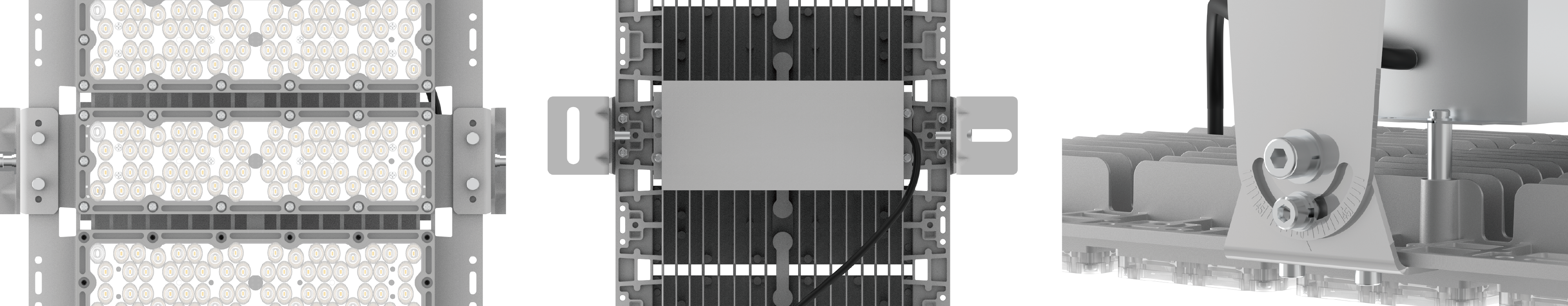

  • Integral die-casting heat dissipation module design, simple and solid structure, excellent heat dissipation, long life;
  • Outdoor electrostatic spraying process on the surface of the module, strong corrosion and weather resistance, applicable to a variety of complex environments;
  • The lens is made of high quality imported optical grade material, accurate light distribution, high efficiency and strong weather resistance;
  • Multiple light distribution angles, suitable for a variety of lighting applications;
  • PLC/485 and other intelligent control options;
  • Anti-electrocution protection: Class 1.

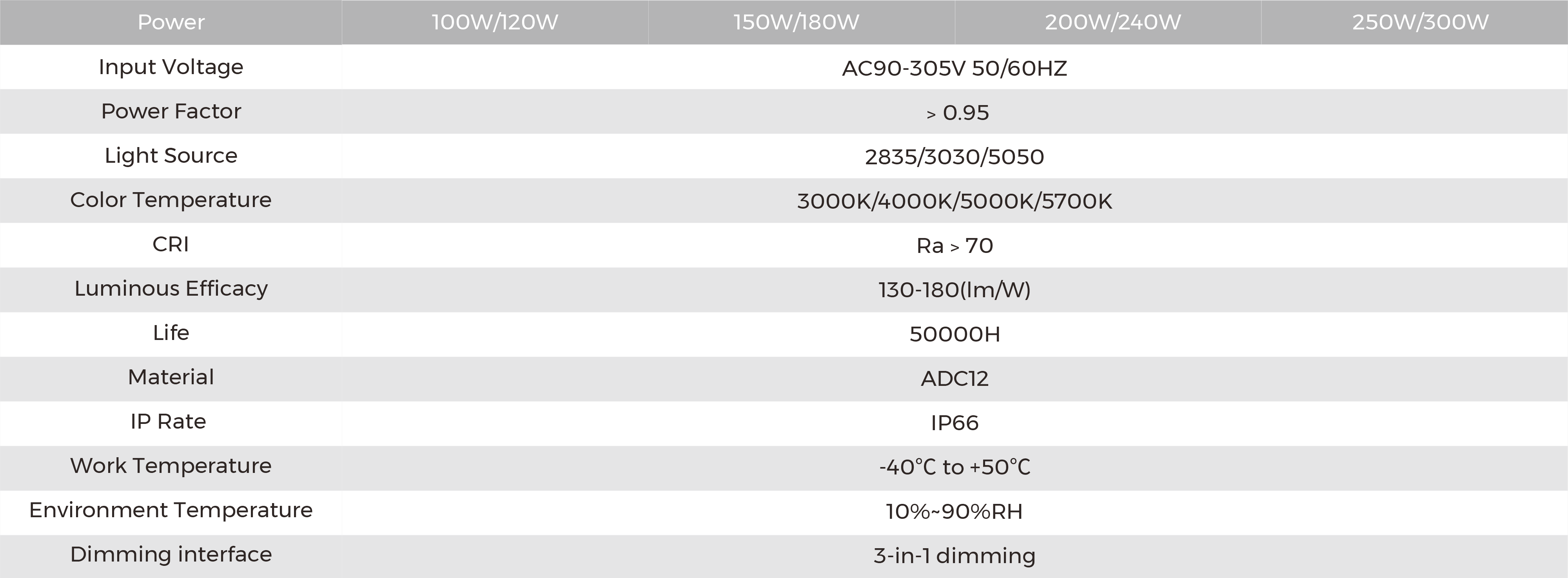

Basic Specifications

Power:100W/120W、150W/180W、200W/240W、250W/300W
Input Voltage:AC90-305V 50/60HZ
Power Factor:﹥0.95
Light Source:2835/3030/5050
Color:3000K/4000K/5000K/5700K
CRI:Ra﹥70
Luminous Efficacy:130-180(lm/W)
Life:50000H
Material:ADC12
IP Rating:IP66
Work Temperature:-40℃ to +50℃
Environment humidity:10%~90%RH
Installation: Bracket installation
