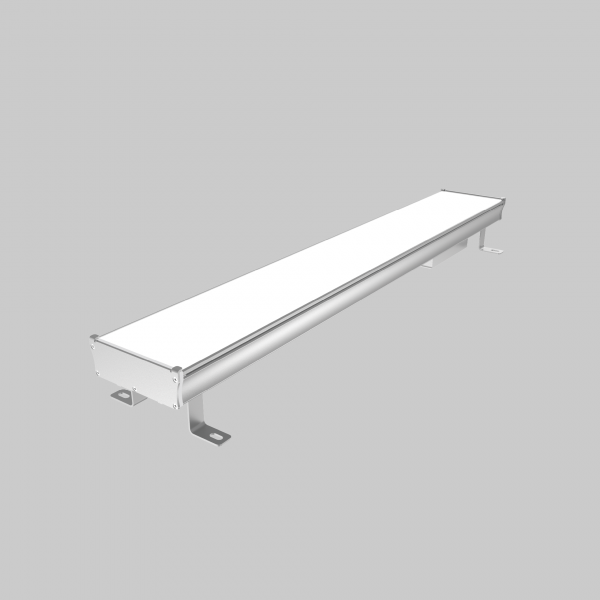

EXC-TL-Z03

  • Adopts waterproof isolated switching power supply of famous brand, high safety and reliability;
  • Line shape design can be seamless;
  • Light body surface anodic oxidation process, corrosion resistance and weather resistance, applicable to a variety of complex environments;
  • Uniform light output, no glare;
  • PLC/485 and other intelligent control options;
  • Anti-electrocution protection: Class 1.

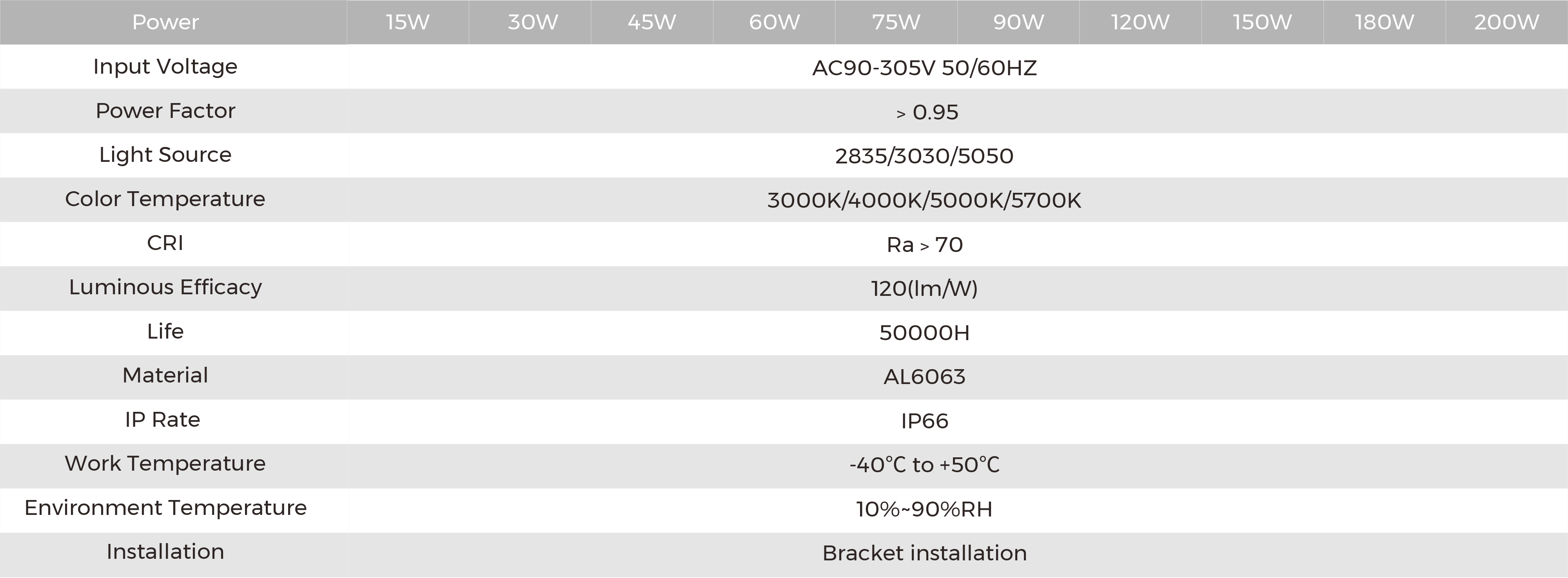

Basic Specifications

Power:15W/30W/45W/60W/75W/90W/120W/150W/180W/200W
Input Voltage:AC90-305V 50/60HZ
Power Factor:﹥0.95
Light Source:2835/3030/5050
Color:3000K/4000K/5000K/5700K
CRI:Ra﹥70
Luminous Efficacy:120(lm/W)
Life:50000H
Material:AL6063
IP Rating:IP66
Work Temperature:-40℃ to +50℃
Environment humidity:10%~90%RH

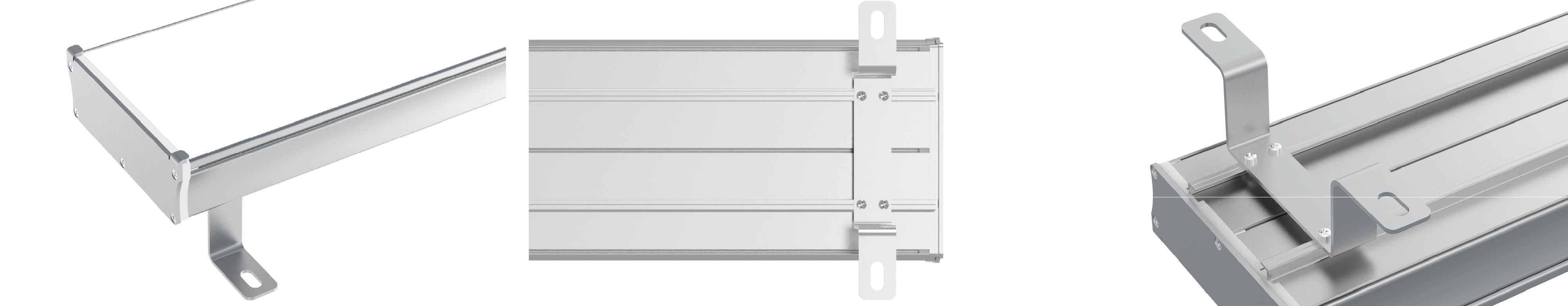

Installation: Bracket installation
