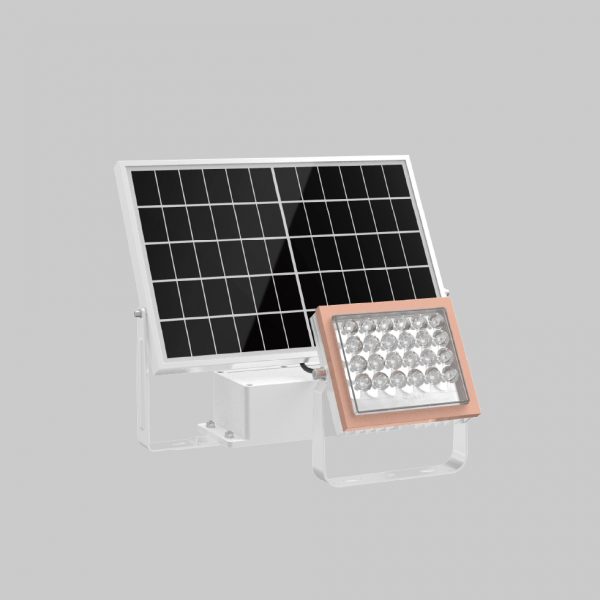

EXC-TEB140A



  • Supports adaptive time tracking extreme energy-saving technology, effectively extending the battery life
  • New high light efficiency optical system, high efficiency and high quality light output.
  • Support light control, time control scene adaptive intelligent application.
  • High-efficiency monocrystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design.
  • High-quality assembly process, outdoor multi-scene all-weather application.
  • Support light control anti-interference, built-in highly integrated multi-dimensional security protection design
  • Simple rotating bracket with ground-plugging installation design, flexible and convenient application.
Basic Specifications

Peak power consumption: 12W
Average power consumption: 4W
Light source: 24 x LED
Color: 2200-6500K
Light output: W≥75lm/w
Photovoltaic battery specifications: 10W monocrystalline silicon
Energy storage battery specifications: 9000mAh LFP
Rated charging time: 7-8 h
Rated maximum endurance: 7-8h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 2 rainy days
Control : Light Control/ Time control
Material: ABS、PC、Glass

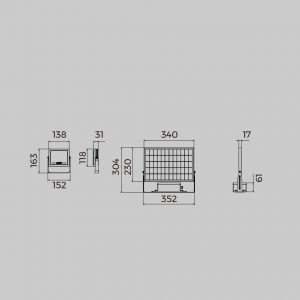

Size: L*W*H:163*152*31mm
IP Rating: IP65
Weight: 2.2kg
Charging temperature: 0~50 ℃
Storage temperature: -20~70 ℃
Discharge temperature: -20~50 ℃
Life: ≥15000h (battery capacity ≥80%)

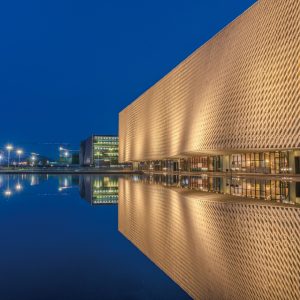

Application: Localized light casting, rubbing wall lighting, rotating bracket mounting + ground insertion mounting

Resources
Optional Parameters

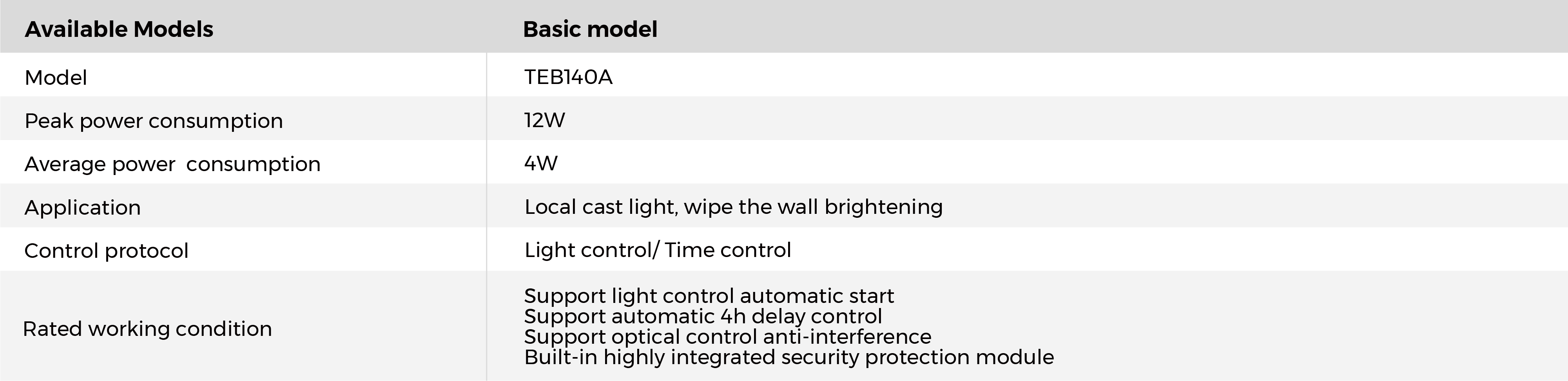

Available Models



Installation Methods
