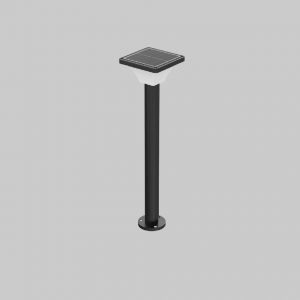

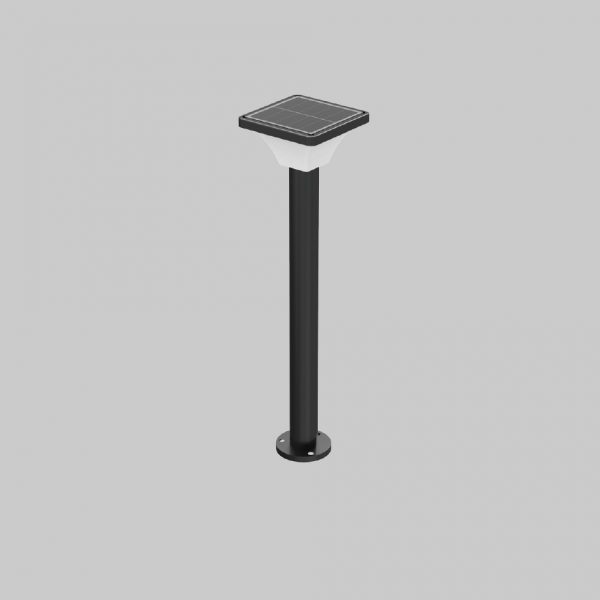

EXC-TCP205A



  • Supports adaptive time trackingExtreme energy-saving technology, effectively extend the life of the new high optical efficiency optical system, high efficiency, high quality light output
  • Support light control, time control scene adaptive intelligent applications
  • High-efficiency monocrystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design to support light control anti-interference, built-in highly integrated multi-dimensional security protection design
  • Lawn pole surface, plug-in installation design, flexible and convenient application
Basic Specifications

Peak power consumption: 3 W
Average power consumption : 1W
Light Source: 16x LED
Color: 2200~6500K
Light output: W>60lm/w
Photovoltaic battery specifications : 5W monocrystalline silicon
Energy storage battery specifications: 3000mAh LFP
Rated charging time: 2-3h
Rated maximum endurance : 9-10h
Rated rainy day resistance: single-day work 3h, can withstand ≥ 3 rainy days
Control mode: Light Control/Time Control
Material: Aluminium alloy、PMMA
Size: L*W*H: 148*148*192mm
IP Rating: IP54
Weight: 2 kg
Charging temperature: 0-50°C
Storage temperature: -20-70°C
Discharge temperature: -20~50°C
Life: ≥15000h

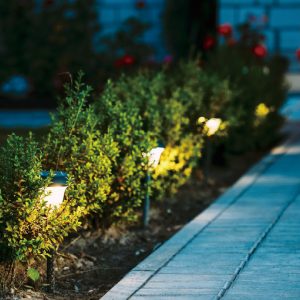

Applications:Localized floodlighting of lawn, surface of poles, insertion of ground installation

Resources
Optional Parameters

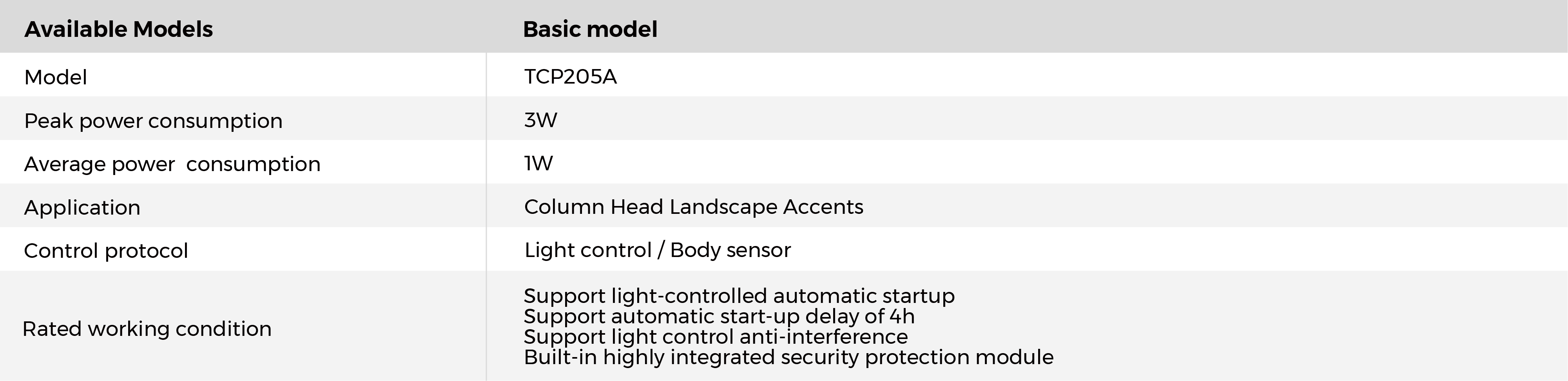

Available Models
