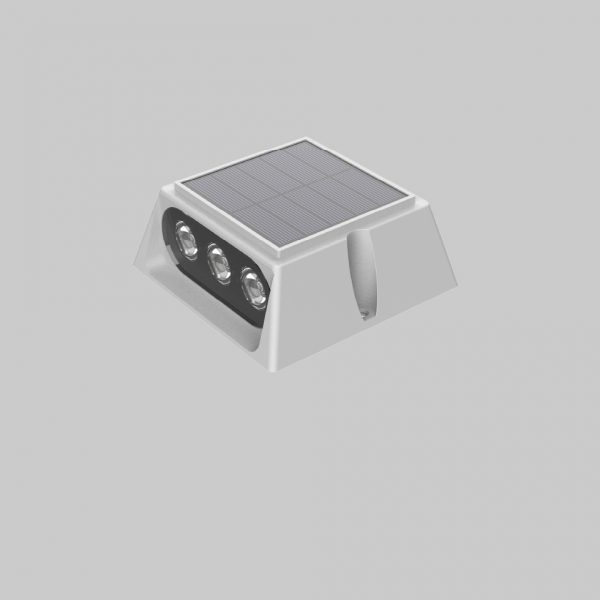

EXC-TBD100A



  • Support adaptive time tracking extreme energy-saving technology, effectively extend the endurance
  • Adopt new high light efficiency optical system, high efficiency and high quality light output
  • Support light control scene adaptive intelligent application
  • High-efficiency single product crystalline silicon photovoltaic module, high-efficiency and safe lithium iron phosphate battery hardware design.
  • Professional photovoltaic system with high-quality assembly process, realizing outdoor multi-scene all-weather application.
  • Support light control anti-interference, built-in highly integrated multi-dimensional safety protection design.
  • Simple fixed surface mounting design, flexible and convenient application.
Basic Specifications

Peak power consumption:0.1 W
Average power consumption:0.1 W
Light Source:3 x LED
Color:2200~6500K
Light output:W≥75lm/w
Photovoltaic battery specifications:0.5W monocrystalline silicon
Energy storage battery specifications:1500mAh LFP
Rated charging time:12-13h
Rated maximum endurance:46h
Rated rainy day resistance: single-day work 10h, can withstand ≥ 3 rainy days
Control mode:Light Control
Material:Aluminium alloy、Glass

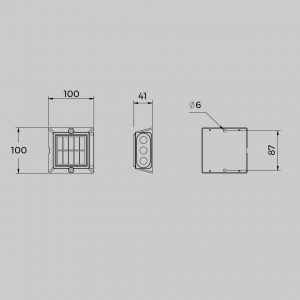

Size:L*W*H: 100*100*41mm
IP Rating:IP67
Weight:0.35kg
Charging temperature:0~50 ℃
Storage temperature:-20~70 ℃
Discharge temperature:-20~50 ℃
Life:≥15000h

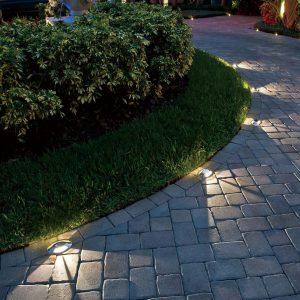

Applications:Walkway drop wash, surface mounted

Resources
Optional Parameters

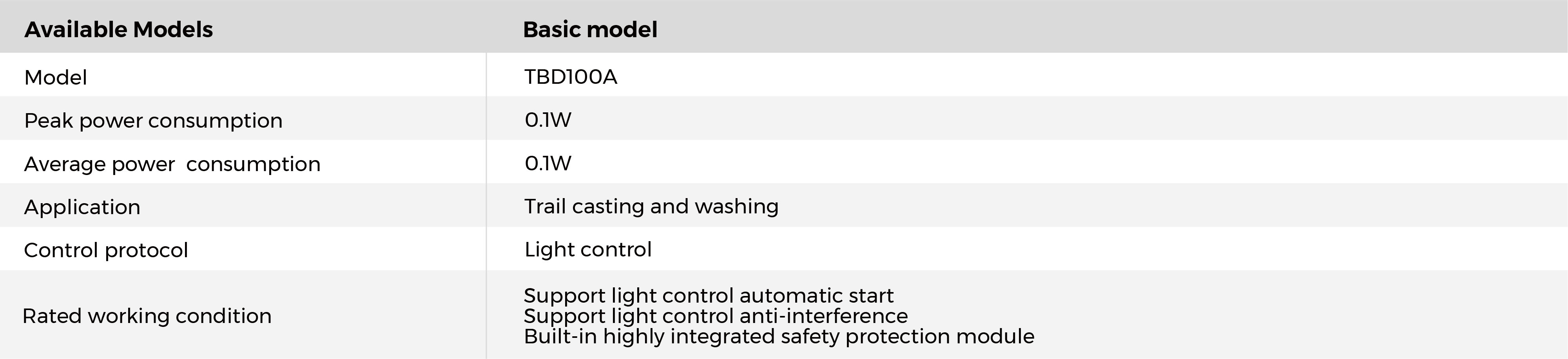

Available Models
