EXC-ML20B/ML20H/ML30H/MLS4H/MLS5H

4EXC-ML20B-ML20H-ML30H-MLS4H-MLS5H Series@2x

Module structure serialized design, suitable for different modules and different power;
The lamp body is made of aluminum alloy, with good thermal conductivity, longer product life;
Surface anodizing treatment, strong corrosion resistance, good weather resistance, applicable to a variety of complex environments;
The structure is waterproof, effectively guaranteeing long durability;
Professional optical design, for two-lane/two-way four-lane 3 times and 3.5 times the distance of the high ratio of road illumination.
Standard design, with high uniformity and low glare and other excellent lighting effects;
Lamp structure, electrical safety in full compliance with EN60598, GB7000 standard requirements;
Anti-electrocution protection: Class 1 category;

Basic Specifications

Light source： 3030/5050
Color： 3000K/4000K/5000K/5700K
CRI： >70
Life： >50000 H
Material： Aluminium alloy 6063-T5
IP Rating： IP66
Work Temperature： -40℃ to 50℃
Storage temperature： -40℃ to 65℃
Environment humidity： 10%~90%RH
Application environment： Roadway lighting

Resources

Specification lES File CAD Drawing

Optional Parameters

Power

30W

40W

60W

Color

3000K

4000K

5000K

5700K

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear

Add To Wishlist

View Wishlist

KNX INTELLIGENT CONTROL SYSTEM

IOT ENERGY-SAVING LAMP

AI RDM

EXC-ML20B/ML20H/ML30H/MLS4H/MLS5H

Basic Specifications

Resources

Optional Parameters

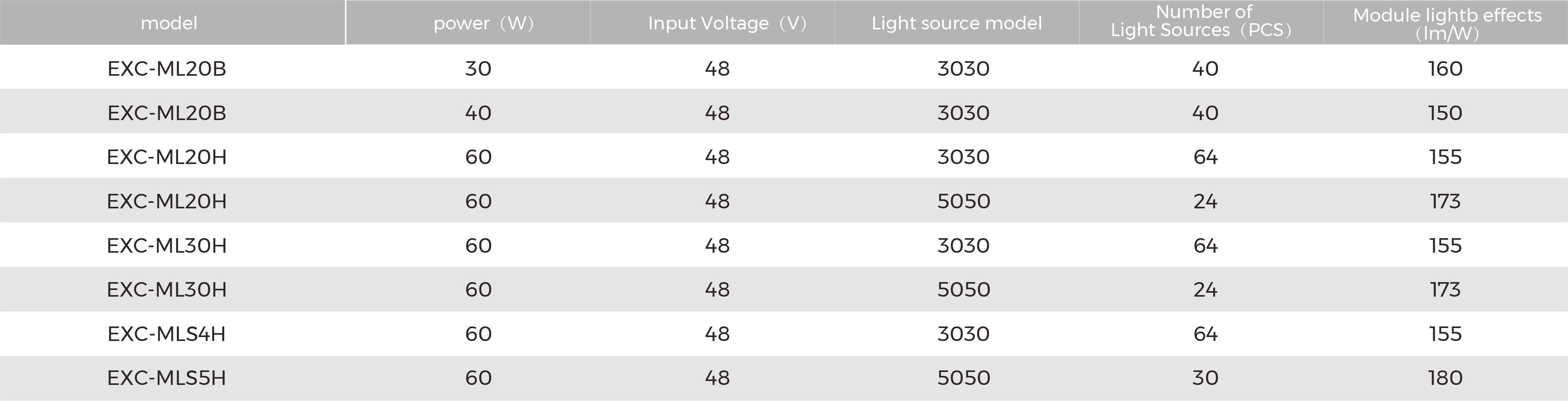

Available Models
