EXC-JY05

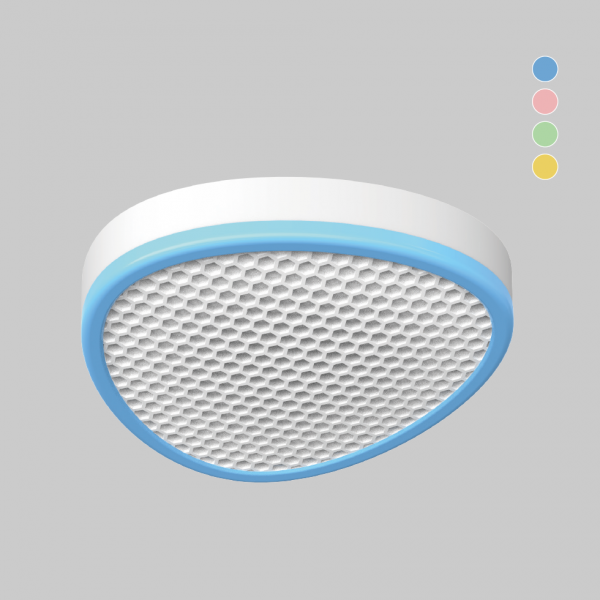

EXC-JY kindergarten light is a straight light-emitting one-piece lamp, the lamp body adopts metal back plate + injection molding frame design, dustproof and moisture-proof;
Diffusion plate using high-quality PS materials, haze 75%, high brightness, high brightness uniformity, not blinding and not dazzling glare, the average desk to maintain illuminance, > 420lx, illuminance uniformity 0.8;
1537 chip package, high luminous efficacy, low energy consumption, long service life, 10000H luminous flux maintenance rate of >97.9%, small light decay, no blue light hazard;
Wide-angle lens on the surface of the lamp beads, light surface uniform light, no light spots and no shadows;
No strobe, high efficiency, light output waveform fluctuation depth <1%;
Adjustable mounting bracket is used for fixing the backplate and boom, convenient for installation and debugging in various application scenarios, rigid connection, reliable and safe.

Basic Specifications

Voltage：AC220-240V
Power：28W
Power factor：≥0.95
Luminous Efffcacy：>85lm/W
Luminous flux：≥2500lm
Color rendering index (CRI)：>95
Color：4000K±200K
Color Tolerance：≤4 SDCM
UGR：<16
Blue Light Hazard：RG0
IP Rate：IP40
Installation：Pendant mount/Ceiling-mounted
Weight：2.29kg
Dimensions：500x400x65mm

Resources

Specification IES File CAD Drawing

Optional Parameters

Color

4000K±200K

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
