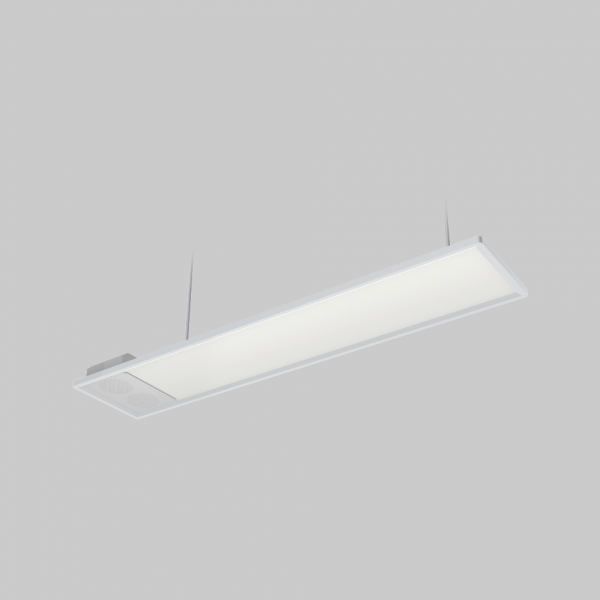

EXC-JJ08B



  •  A multifunctional classroom light with sound amplification equipment, the body of the light is made of metal aluminum frame, mold extrusion one-piece molding, product strength, impact resistance greatly enhance the degree of the back plate is made of metal, safe and environmentally friendly;
  • Three-layer optical design, lamps and lanterns with high luminous efficiency, more uniform light, low glare.
  • Adopt high index, high luminous efficiency 2835 lamp beads, low light decay, blue light hazard RG0;
  • Isolated high PF value, low THD driver, no strobe, high efficiency, light output waveform fluctuation depth <1%;
  • With AI intelligent sound amplification, can be combined with hanging microphone, amplifier equipment to form an interactive intelligent sound classroom.
Basic Specifications

Voltage:AC220-240V
Power:36W
Power factor:≥0.95
Color rendering index (CRI):Ra>95,R9>90,full-spectrum LED
Luminous flux:3000-3600lm
Luminous Efffcacy:>85lm/W
Blue Light Hazard:RG0
Color Tolerance:≤3 SDCM
Color:5000K/3700K
Flicker:<1%
Anti-Glare:Prismatic anti-glare
Angle:C0-180 96° C90-270 93°
UGR:<16
Blackboard Surface Uniformity:>0.80
Installation:Pendant mount
IP Rate:IP40
Material:Aluminum profile + plastic end cap

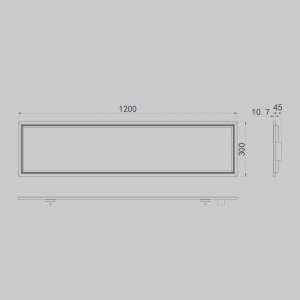

Dimensions:1200x300x45mm
