EXC-JJ06B

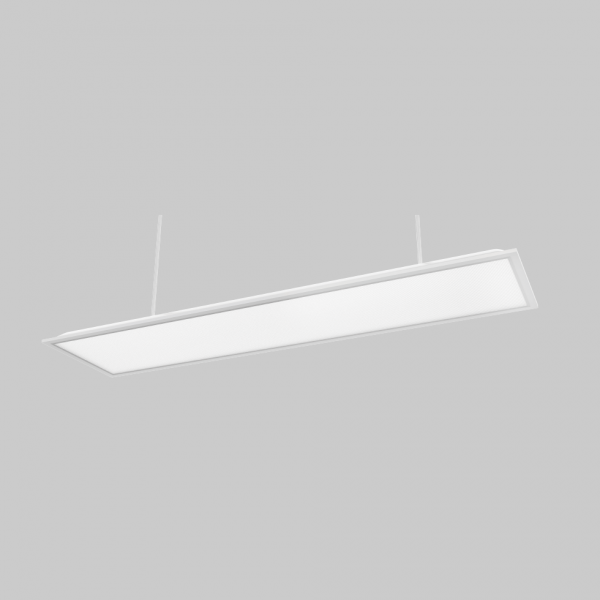

  • A straight down type of cost-effective prismatic anti-glare classroom light.
  • The light body is made of one-piece metal aluminum frame, which greatly improves the strength and impact resistance of the product;
  • The back plate is made of metal, which is safe and environmentally friendly;
  • Three-layer optical design, high luminous efficacy, more uniform light, low glare.
  • Adopt high index, high luminous efficacy 2835 lamp beads, low light decay, blue light hazard RG0.
  • Isolated high PF value, low THD driver, no strobe, high efficiency, the depth of fluctuation of the light output waveform <1%.
Basic Specifications

Voltage:AC220-240V
Power:36W
Power factor:≥0.90
Color rendering index (CRI):Ra>95,R9>90,full-spectrum LED
Luminous flux:3000-3600lm
Luminous Efffcacy:>85lm/W
Blue Light Hazard:RG0
Color Tolerance:≤5 SDCM
Color:5000K/3700K
Flicker:<1%
Anti-Glare:Prismatic anti-glare
Angle:C0-180 96° C90-270 93°
UGR:<16
Blackboard Surface Uniformity:>0.80
Installation:Pendant mount
IP Rate:IP40
Material:Aluminum profile + plastic end cap

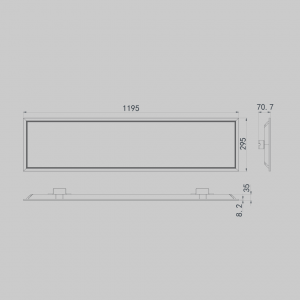

Dimensions:1195x295x70.7mm
