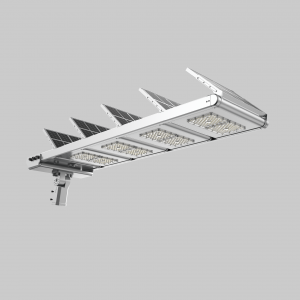

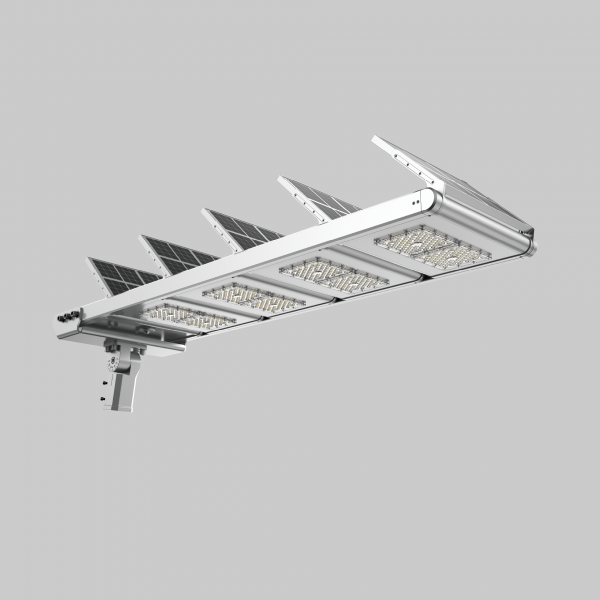

EXC-CR-Z02

The lens is made of high quality imported optical grade material, accurate light distribution, high efficiency and strong weather resistance;
Segmented dimming and morning bright design, working time 0 to 15 hours can be set, power 0% to 100% can be set;
Extremely low dormant current, convenient for long-distance transportation and storage;
Solar panel can be individually adjusted from 0 to 40 degrees, which can maximize the absorption of sunlight and get higher charging efficiency;
Lamps can be flexibly adjusted in angle to meet the installation needs of different environments;
Modular design, easy to install and fast standardization for expansion;
Metal shell, IP65 waterproof grade, can be used in a variety of harsh environments;
Branded lithium A-grade battery core, using cycle life ≧ 2000 times;
High-efficiency monocrystalline silicon wafer, life expectancy ≧ 25 years.

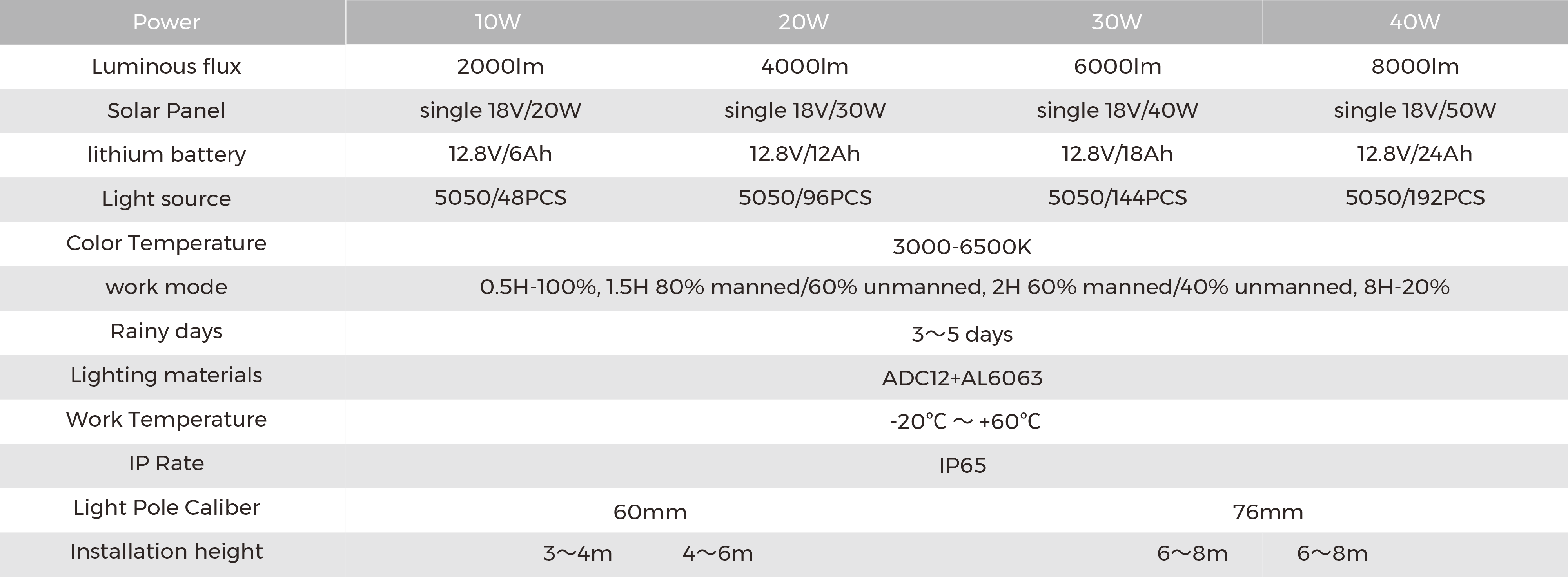

Basic Specifications

Power：10W/20W/30W/40W
Luminous flux：2000lm/4000lm/6000lm/8000lm
Solar Panel：monocrystal18V/20W、monocrystal18V/30W、monocrystal18V/40W、monocrystal18V/50W
lithium battery：12.8V/6AH、12.8V/12AH、12.8V/18AH、12.8V/24AH
Light Source：5050/48PCS、5050/96PCS、5050/144PCS、5050/192PCS
Color：3000-6500K
Work mode：0.5H-100%,1.5Hsomebody80%/nobody60%,2Hsomebody60%/nobody40%,8H-20%
Rainy days：3~5days
Material：ADC12+AL6063
Work Temperature：-20℃ ～ +60℃
IP Rating：IP65
Light Pole Caliber：60mm/76mm
Installation height：3～4m/4～6m/6～8m

Resources

Specification lES File CAD Drawing

Optional Parameters

Power

20W

30W

10W

40W

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized
