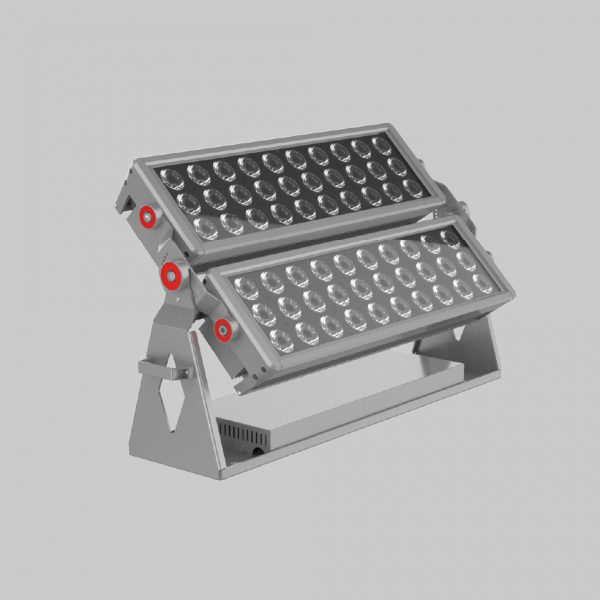

EXC-B200D-WL（Double Head）

High power density up to 40mW/cm3;
Outstanding heat dissipation performance with heat vector heat dissipation technology + dynamic integral heat balance technology;
High brightness, light intensity up to 1 million cd (960W RGBW3°);
Light weight, small size, aluminum alloy lamp body, IP66 waterproof grade;
With OTP thermal management function, to ensure the life of the lamp;
Dual-head combination to meet higher power applications;
Support color correction function, wide color gamut (2.16 times the display color gamut), good color mixing effect.
Bright and pure colors;
Color temperature 1800-6500K smooth adjustment, high color rendering index, R9 value, show the finger and R9 are ≥ 90;
16Bit grayscale dimming, grayscale and light color transition smooth and natural;
RDM control function, the world's unique identity code (UID);
Powerful control function, support multi-channel mode + total dimming + strobe + smooth color temperature curve + custom channel function.

Basic Specifications

Operating Voltage：AC220V
Max Power:1000W
Color:RGBW(1800-6500K)
Light Source: SMD / R+G+B+W LED
Material: Die-casting aluminum / Glass lampshade
Weight：28Kg
Life：50000h
IP Rating：IP66
Application Environment：Outdoor

Resources

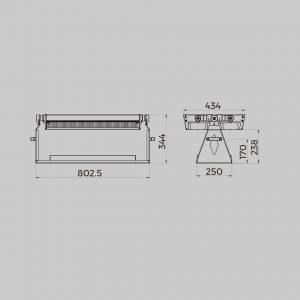

Specification IES File CAD Drawing

Optional Parameters

Control protocol

DMX512

RDM

Product Silkscreen

EXC

/

Customized

Product Label

EXC

/

Customized

Clear

Add To Wishlist

View Wishlist

KNX INTELLIGENT CONTROL SYSTEM

IOT ENERGY-SAVING LAMP

AI RDM

EXC-B200D-WL（Double Head）

Basic Specifications

Resources

Optional Parameters

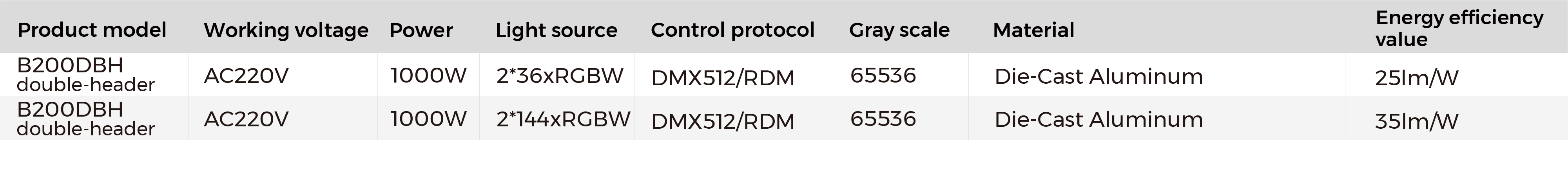

Available Models

Installation Methods
